By: HFVT Camera

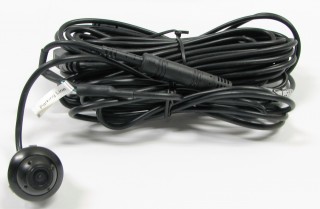

The HF-BSC-1 is a pivotal lens that can easily angle to obtain the best view for your blind spot and is adaptable for the front, side or rear of the vehicle. We also offer several mirrors that connect to the HF-BSC-1 which offer the greatest safety for you and your family.


HF-BSC-1 (blind spot camera) offers several great features:

  • Current consumption: MAX: 150mA
  • Sensor: CMOs
  • Resolution (TV lines): 480
  • Minimum Illumination:  0.3 Lux
  • Angle: 170º
  • Effective pixels: 648*488
  • TV system:  NTSC
  • Video output: Full color video out: 1.0Vp-p 75 (ohm) load
  • Working voltage: DC 9-16v
  • Video color: full color
  • Wter proof: IP67-IP68
  • Operating Temperature: -30ºC to +70ºC
  • Parking guard line: On/Off Switchable
  • Image: Mirror/Non-Mirror Switchable
